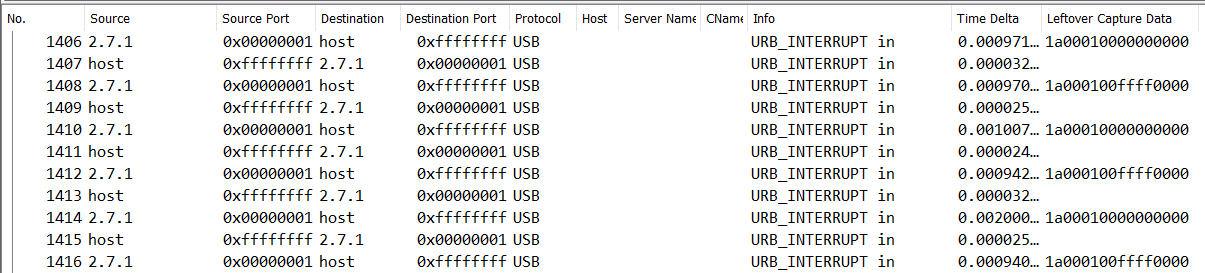

If you have a pcap containing the communication via USB of a keyboard like the following one:

USB keyboards usually speak the HID boot protocol, so every interrupt transfer towards the host is only 8 bytes long: one byte of modifier bits (Ctrl/Shift/Alt/Super), one reserved byte, and up to six keycodes per report. Decoding those bytes is enough to rebuild everything that was typed.

USB HID report basics

The typical IN report looks like:

ByteMeaning
0Modifier bitmap (0x02 = Left Shift, 0x20 = Right Alt, etc.). Multiple bits can be set simultaneously.
1Reserved/padding but often reused by gaming keyboards for vendor data.
2-7Up to six concurrent keycodes in USB usage ID format (0x04 = a, 0x1E = 1). 0x00 means “no key”.

Keyboards without NKRO usually send 0x01 in byte 2 when more than six keys are pressed to signal “rollover”. Understanding this layout helps when you only have the raw usb.capdata bytes.

Extracting HID data from a PCAP

Identify the keyboard interface first

On busy captures, identify the HID keyboard before dumping any reports. A reliable starting point is the interface descriptor response:

usb.transfer_type == 0x02 && usb.endpoint_address.direction == 1 && usb.bDescriptorType == 4 && usb.bInterfaceClass == 3

Look at usb.bInterfaceSubClass and usb.bInterfaceProtocol:

  • subclass == 1 and protocol == 1 usually means a boot keyboard
  • protocol == 2 is typically a mouse
  • protocol == 0 often means a vendor-defined or NKRO-style HID interface that still carries keyboard data, but not in the simple 8-byte boot layout

Once the interface is known, pin your filters to usb.bus_id, usb.device_address, and if possible usb.interface_number before exporting anything.

Wireshark workflow

  1. Isolate the device: filter on interrupt IN traffic from the keyboard, e.g. usb.transfer_type == 0x01 && usb.endpoint_address.direction == "IN" && usb.device_address == 3.
  2. Add useful columns: right-click the Leftover Capture Data field (usb.capdata) and your preferred usbhid.* fields (e.g. usbhid.boot_report.keyboard.keycode_1) to follow keystrokes without opening every frame.
  3. Hide empty reports: apply !(usb.capdata == 00:00:00:00:00:00:00:00) to drop idle frames.
  4. Export for post-processing: File -> Export Packet Dissections -> As CSV, include frame.number, usb.src, usb.capdata, and usbhid.modifiers to script the reconstruction later.

Command-line workflow

ctf-usb-keyboard-parser already automates the classic tshark + sed pipeline:

tshark -r ./usb.pcap -Y 'usb.capdata && usb.data_len == 8' -T fields -e usb.capdata | sed 's/../:&/g2' > keystrokes.txt
python3 usbkeyboard.py ./keystrokes.txt

On newer captures you can keep both usb.capdata and the richer usbhid.data field by batching per device:

tshark -r usb.pcapng -Y "usb.capdata || usbhid.data" -T fields -e usb.src -e usb.capdata -e usbhid.data | \
  sort -s -k1,1 | \
  awk '{ printf "%s", (NR==1 ? $1 : pre!=$1 ? "\n" $1 : "") " " $2; pre=$1 }' | \
  awk '{ for (i=2; i<=NF; i++) print $i > "usbdata-" $1 ".txt" }'

Those per-device files drop straight into any decoder. If the capture came from BLE keyboards tunneled over GATT, filter on btatt.value && frame.len == 20 and dump the hex payloads before decoding.

When the report is not the classic 8-byte boot report

Recent gaming keyboards, split keyboards, and composite HID devices often expose a non-boot keyboard interface where the payload no longer matches modifier,reserved,key1..key6.

  • Prefer usbhid.data over usb.capdata when Wireshark has already parsed the HID layer.
  • If every line starts with a constant prefix or report ID, strip it with an offset-aware decoder rather than assuming byte 0 is always the modifier.
  • Some USBPcap exports omit the reserved byte, so decoders that support --no-reserved or a custom offset save time.
  • If the HID report descriptor or BLE HOGP report map is present in the capture, use it to recover the actual field layout before writing a parser.

Automating the decoding

  • ctf-usb-keyboard-parser remains handy for quick CTF challenges and already ships in the repository.
  • CTF-Usb_Keyboard_Parser (main.py) parses both pcap and pcapng files natively, understands LinkTypeUsbLinuxMmapped/LinkTypeUsbPcap, and does not require tshark, so it works nicely inside isolated sandboxes.
  • USB-HID-decoders adds keyboard, mouse, and tablet visualizers. You can either run the extract_hid_data.sh helper (tshark backend) or extract_hid_data.py (scapy backend) and then feed the resulting text file to the decoder or replay modules to watch the keystrokes unfold.

Stateful decoding matters

USB interrupt captures usually contain both the key press and one or more repeated copies of the same report before the release event arrives. A practical decoder should:

  • emit only newly pressed keycodes compared to the previous report
  • keep modifier state (Shift, Ctrl, AltGr) from byte 0 or the parsed usbhid.boot_report.keyboard.modifier field
  • track toggle keys such as Caps Lock, because uppercase output is not controlled by Shift alone
  • remember that HID usage IDs are layout-agnostic: 0x1d is the physical z/y key position depending on the host keyboard layout

Quick Python decoder

#!/usr/bin/env python3
import sys
NORMAL = {0x04:'a',0x05:'b',0x06:'c',0x07:'d',0x08:'e',0x09:'f',0x0a:'g',0x1c:'y',0x1d:'z',0x28:'\n',0x2d:'-',0x2e:'=',0x2f:'[',0x30:']',0x33:';',0x34:"'",0x36:',',0x37:'.'}
SHIFTED = {0x2d:'_',0x2e:'+',0x2f:'{',0x30:'}',0x33:':',0x34:'"',0x36:'<',0x37:'>'}
prev = set()
caps = False
for raw in sys.stdin:
    raw = raw.strip().replace(':', '')
    if len(raw) != 16:
        continue
    modifier = int(raw[0:2], 16)
    keycodes = [int(raw[i:i+2], 16) for i in range(4, 16, 2)]
    current = {k for k in keycodes if k}
    newly_pressed = [k for k in keycodes if k and k not in prev]
    shift = bool(modifier & 0x22)
    for keycode in newly_pressed:
        if keycode == 0x39:
            caps = not caps
            continue
        char = SHIFTED.get(keycode) if shift else None
        if char is None:
            char = NORMAL.get(keycode, '?')
            if char.isalpha() and (shift ^ caps):
                char = char.upper()
        sys.stdout.write(char)
    prev = current

Feed it with the plain hex lines dumped earlier to get an instant rough reconstruction without pulling a full parser into the environment. For non-US layouts this still reconstructs the physical key position, not necessarily the final glyph shown on the victim host.

Troubleshooting tips

  • If Wireshark does not populate usbhid.* fields, the HID report descriptor was probably not captured. Replug the keyboard while capturing or fall back to raw usb.capdata.
  • On Linux software captures, usbmon is the normal source; on Windows, Wireshark depends on the USBPcap extcap to see raw USB URBs at all.
  • If the keyboard was attached through a hub or dock, confirm the interface descriptor first and then decode only that device/interface pair. Composite HID captures frequently mix keyboard and mouse reports.
  • Windows captures require the USBPcap extcap interface; make sure it survived Wireshark upgrades, as missing extcaps leave you with empty device lists.
  • Always correlate usb.bus_id:device:interface (e.g. 1.9.1) before decoding anything — mixing multiple keyboards or storage devices leads to nonsense keystrokes.
