Taarifa za Msingi

I/O Kit ni mfumo wa chanzo wazi, unaotegemea vitu (object-oriented) wa mfumo wa dereva wa kifaa (device-driver framework) katika kernel ya XNU, unaoshughulikia madereva ya kifaa yanayopakuliwa wakati wa utekelezaji (dynamically loaded device drivers). Unaruhusu kuongezwa kwa msimbo wa modular kwenye kernel kwa wakati wa utekelezaji, ukisaidia vifaa mbalimbali.

Madereva ya IOKit kwa msingi hutoa (export) functions kutoka kernel. Aina za vigezo vya functions hizi (function parameter types) zimewekwa mapema (predefined) na zinathibitishwa. Zaidi ya hayo, kama XPC, IOKit ni tabaka jingine juu ya Mach messages.

IOKit XNU kernel code imetolewa kama chanzo wazi na Apple katika https://github.com/apple-oss-distributions/xnu/tree/main/iokit. Vilevile, vipengele vya IOKit vinavyofanya kazi katika user space vimewekwa kama chanzo wazi https://github.com/opensource-apple/IOKitUser.

Hata hivyo, hakuna madereva ya IOKit yaliyochanzo wazi. Kwa kawaida, mara kwa mara toleo la dereva linaweza kuja na symbols ambazo zinafanya iwe rahisi kuibug (debug). Angalia jinsi ya pata nyongeza za dereva kutoka firmware hapa.

Imeandikwa kwa C++. Unaweza kupata alama za C++ zilizo-demangle kwa:

# Get demangled symbols
nm -C com.apple.driver.AppleJPEGDriver

# Demangled symbols from stdin
c++filt
__ZN16IOUserClient202222dispatchExternalMethodEjP31IOExternalMethodArgumentsOpaquePK28IOExternalMethodDispatch2022mP8OSObjectPv
IOUserClient2022::dispatchExternalMethod(unsigned int, IOExternalMethodArgumentsOpaque*, IOExternalMethodDispatch2022 const*, unsigned long, OSObject*, void*)

Caution

IOKit funsi zilizo wazi zinaweza kufanya ukaguzi wa usalama wa ziada wakati mteja anapojaribu kuita funsi, lakini kumbuka kwamba programu kwa kawaida ziko zilizo na mipaka kupitia sandbox kwa funsi za IOKit ambazo zinaweza kuingiliana nazo.

Madereva

Katika macOS zinapatikana katika:

  • /System/Library/Extensions
  • KEXT files zilijengwa ndani ya mfumo wa uendeshaji wa OS X.
  • /Library/Extensions
  • KEXT files zilizowekwa na software ya wahusika wa tatu

Katika iOS zinapatikana katika:

  • /System/Library/Extensions
#Use kextstat to print the loaded drivers
kextstat
Executing: /usr/bin/kmutil showloaded
No variant specified, falling back to release
Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>
1  142 0                  0          0          com.apple.kpi.bsd (20.5.0) 52A1E876-863E-38E3-AC80-09BBAB13B752 <>
2   11 0                  0          0          com.apple.kpi.dsep (20.5.0) 52A1E876-863E-38E3-AC80-09BBAB13B752 <>
3  170 0                  0          0          com.apple.kpi.iokit (20.5.0) 52A1E876-863E-38E3-AC80-09BBAB13B752 <>
4    0 0                  0          0          com.apple.kpi.kasan (20.5.0) 52A1E876-863E-38E3-AC80-09BBAB13B752 <>
5  175 0                  0          0          com.apple.kpi.libkern (20.5.0) 52A1E876-863E-38E3-AC80-09BBAB13B752 <>
6  154 0                  0          0          com.apple.kpi.mach (20.5.0) 52A1E876-863E-38E3-AC80-09BBAB13B752 <>
7   88 0                  0          0          com.apple.kpi.private (20.5.0) 52A1E876-863E-38E3-AC80-09BBAB13B752 <>
8  106 0                  0          0          com.apple.kpi.unsupported (20.5.0) 52A1E876-863E-38E3-AC80-09BBAB13B752 <>
9    2 0xffffff8003317000 0xe000     0xe000     com.apple.kec.Libm (1) 6C1342CC-1D74-3D0F-BC43-97D5AD38200A <5>
10   12 0xffffff8003544000 0x92000    0x92000    com.apple.kec.corecrypto (11.1) F5F1255F-6552-3CF4-A9DB-D60EFDEB4A9A <8 7 6 5 3 1>

Mpaka nambari 9, drivers walioorodheshwa wamepakiwa katika address 0. Hii ina maana kwamba hao si drivers halisi bali sehemu ya kernel na hawawezi kuondolewa.

Ili kutafuta extensions maalum unaweza kutumia:

kextfind -bundle-id com.apple.iokit.IOReportFamily #Search by full bundle-id
kextfind -bundle-id -substring IOR #Search by substring in bundle-id

Ili kupakia na kuondoa kernel extensions fanya:

kextload com.apple.iokit.IOReportFamily
kextunload com.apple.iokit.IOReportFamily

IORegistry

The IORegistry ni sehemu muhimu ya mfumo wa IOKit katika macOS na iOS ambayo hufanya kazi kama hifadhidata ya kuwakilisha muundo wa vifaa vya mfumo na hali yake. Ni mkusanyo wa kihierarkia wa vitu vinavyowakilisha vifaa vyote na madereva ya kifaa yaliyopakiwa kwenye mfumo, pamoja na uhusiano wao kwa kila mmoja.

Unaweza kupata IORegistry kwa kutumia cli ioreg kuikagua kutoka kwenye konsoli (hasa muhimu kwa iOS).

ioreg -l #List all
ioreg -w 0 #Not cut lines
ioreg -p <plane> #Check other plane

You could download IORegistryExplorer from Xcode Additional Tools from https://developer.apple.com/download/all/ and inspect the macOS IORegistry through a graphical interface.

Kwenye IORegistryExplorer, “planes” hutumika kupanga na kuonyesha uhusiano kati ya vitu tofauti katika IORegistry. Kila plane inawakilisha aina maalum ya uhusiano au mtazamo fulani wa usanidi wa vifaa (hardware) na driver za mfumo. Hapa chini kuna baadhi ya planes za kawaida utakazokutana nazo katika IORegistryExplorer:

  1. IOService Plane: Hii ndiyo plane ya jumla zaidi, ikionyesha service objects ambazo zinawakilisha drivers na nubs (mihana/kanali za mawasiliano kati ya drivers). Inaonyesha mahusiano ya provider-client kati ya vitu hivi.
  2. IODeviceTree Plane: Plane hii inawakilisha miunganisho ya kimwili kati ya vifaa vinavyounganishwa kwenye mfumo. Mara nyingi hutumika kuona muundo wa hierarkia ya vifaa vinavyounganishwa kupitia bus kama USB au PCI.
  3. IOPower Plane: Inaonyesha vitu na mahusiano yao kwa mtazamo wa usimamizi wa nguvu (power management). Inaweza kuonyesha ni vitu gani vinavyoathiri hali ya nguvu ya vingine, muhimu kwa kubaini matatizo yanayohusiana na nguvu.
  4. IOUSB Plane: Inalenga hasa vifaa vya USB na mahusiano yao, ikionyesha hierarkia ya USB hubs na vifaa vilivyounganishwa.
  5. IOAudio Plane: Plane hii ni kwa kuwakilisha vifaa vya sauti na mahusiano yao ndani ya mfumo.
  6. …

Mfano wa Msimbo wa Mawasiliano ya Driver

Msimbo ufuatao unaunganisha na huduma ya IOKit YourServiceNameHere na kuita selector 0:

  • Kwanza inaita IOServiceMatching na IOServiceGetMatchingServices kupata huduma.
  • Kisha inaunda muunganisho kwa kuita IOServiceOpen.
  • Mwisho inaita kazi kwa IOConnectCallScalarMethod ikielezea selector 0 (selector ni nambari iliyopangwa kwa kazi unayotaka kuita).
Mfano wa wito wa user-space kwa selector ya driver ```objectivec #import #import

int main(int argc, const char * argv[]) { @autoreleasepool { // Get a reference to the service using its name CFMutableDictionaryRef matchingDict = IOServiceMatching(“YourServiceNameHere”); if (matchingDict == NULL) { NSLog(@“Failed to create matching dictionary”); return -1; }

// Obtain an iterator over all matching services io_iterator_t iter; kern_return_t kr = IOServiceGetMatchingServices(kIOMasterPortDefault, matchingDict, &iter); if (kr != KERN_SUCCESS) { NSLog(@“Failed to get matching services”); return -1; }

// Get a reference to the first service (assuming it exists) io_service_t service = IOIteratorNext(iter); if (!service) { NSLog(@“No matching service found”); IOObjectRelease(iter); return -1; }

// Open a connection to the service io_connect_t connect; kr = IOServiceOpen(service, mach_task_self(), 0, &connect); if (kr != KERN_SUCCESS) { NSLog(@“Failed to open service”); IOObjectRelease(service); IOObjectRelease(iter); return -1; }

// Call a method on the service // Assume the method has a selector of 0, and takes no arguments kr = IOConnectCallScalarMethod(connect, 0, NULL, 0, NULL, NULL); if (kr != KERN_SUCCESS) { NSLog(@“Failed to call method”); }

// Cleanup IOServiceClose(connect); IOObjectRelease(service); IOObjectRelease(iter); } return 0; }

</details>

Kuna **kazi nyingine** ambazo zinaweza kutumika kuita kazi za IOKit mbali na **`IOConnectCallScalarMethod`** kama **`IOConnectCallMethod`**, **`IOConnectCallStructMethod`**...

## Reversing driver entrypoint

Unaweza kupata hizi kwa mfano kutoka kwa [**firmware image (ipsw)**](#ipsw). Kisha, ziiweke kwenye decompiler unayopendelea.

Unaweza kuanza decompiling ya **`externalMethod`** kwani hii ndiyo driver function itakayopokea wito na kuita function sahihi:

<figure><img src="../../../images/image (1168).png" alt="" width="315"><figcaption></figcaption></figure>

<figure><img src="../../../images/image (1169).png" alt=""><figcaption></figcaption></figure>

Wito huo mbaya uliodemangled unamaanisha:
```cpp
IOUserClient2022::dispatchExternalMethod(unsigned int, IOExternalMethodArgumentsOpaque*, IOExternalMethodDispatch2022 const*, unsigned long, OSObject*, void*)

Angalia jinsi kiparamu self kilivyokosekana katika ufafanuzi uliopita; ufafanuzi sahihi utakuwa:

IOUserClient2022::dispatchExternalMethod(self, unsigned int, IOExternalMethodArgumentsOpaque*, IOExternalMethodDispatch2022 const*, unsigned long, OSObject*, void*)

Kwa kweli, unaweza kupata ufafanuzi halisi katika https://github.com/apple-oss-distributions/xnu/blob/1031c584a5e37aff177559b9f69dbd3c8c3fd30a/iokit/Kernel/IOUserClient.cpp#L6388:

IOUserClient2022::dispatchExternalMethod(uint32_t selector, IOExternalMethodArgumentsOpaque *arguments,
const IOExternalMethodDispatch2022 dispatchArray[], size_t dispatchArrayCount,
OSObject * target, void * reference)

With this info you can rewrite Ctrl+Right -> Edit function signature and set the known types:

The new decompiled code will look like:

For the next step we need to have defined the IOExternalMethodDispatch2022 struct. It’s opensource in https://github.com/apple-oss-distributions/xnu/blob/1031c584a5e37aff177559b9f69dbd3c8c3fd30a/iokit/IOKit/IOUserClient.h#L168-L176, you could define it:

Now, following the (IOExternalMethodDispatch2022 *)&sIOExternalMethodArray you can see a lot of data:

Change the Data Type to IOExternalMethodDispatch2022:

after the change:

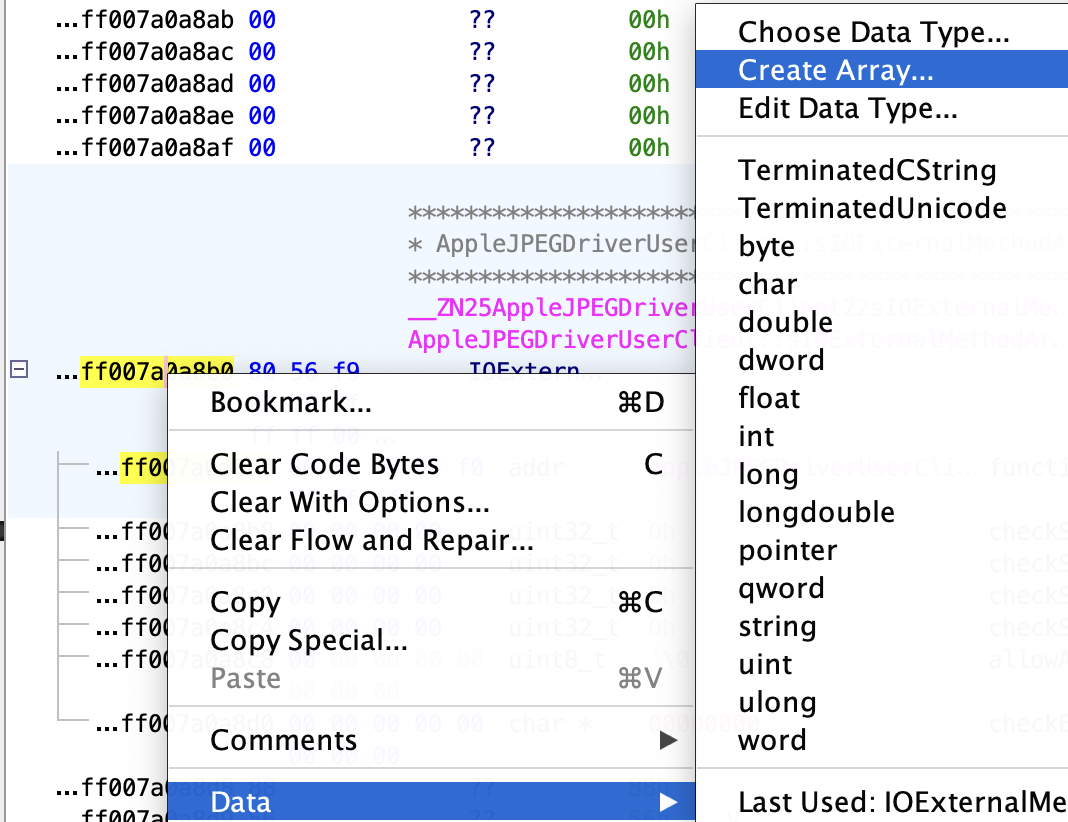

And as we now in there we have an array of 7 elements (check the final decompiled code), click to create an array of 7 elements:

After the array is created you can see all the exported functions:

Tip

Kama unavyokumbuka, ili call exported function kutoka user space hatuhitaji kutumia jina la function, bali nambari ya selector. Hapa unaweza kuona kuwa selector 0 ni function initializeDecoder, selector 1 ni startDecoder, selector 2 initializeEncoder…

Recent IOKit attack surface (2023–2025)

  • Keystroke capture via IOHIDFamily – CVE-2024-27799 (14.5) ilionyesha kwamba mteja wa IOHIDSystem mwenye ruhusa anaweza kunyakua HID events hata akiwa na secure input; hakikisha externalMethod handlers zinahitaji entitlements badala ya kutegemea aina ya user-client pekee.
  • IOGPUFamily memory corruption – CVE-2024-44197 na CVE-2025-24257 zilirekebisha OOB writes zinazoweza kufikiwa kutoka kwa sandboxed apps zinazotuma malformed variable-length data kwa GPU user clients; mende ya kawaida ni mipaka duni kuzunguka vigezo vya IOConnectCallStructMethod.
  • Legacy keystroke monitoring – CVE-2023-42891 (14.2) ilithibitisha kuwa HID user clients bado ni vector ya kutoroka kutoka sandbox; fuzz driver yoyote inayofichua keyboard/event queues.

Quick triage & fuzzing tips

  • Orodhesha external methods zote za user client kutoka userland ili kuzipatia fuzzer seed:
# list selectors for a service
python3 - <<'PY'
from ioreg import IORegistry
svc = 'IOHIDSystem'
reg = IORegistry()
obj = reg.get_service(svc)
for sel, name in obj.external_methods():
print(f"{sel:02d} {name}")
PY
  • When reversing, zingatia idadi za IOExternalMethodDispatch2022. Mfano wa mdudu unaotokea mara kwa mara katika CVE za hivi karibuni ni kutokubaliana kwa structureInputSize/structureOutputSize ikilinganishwa na urefu halisi wa copyin, kusababisha heap OOB katika IOConnectCallStructMethod.
  • Ufikikaji wa Sandbox bado unategemea entitlements. Kabla ya kutumia muda kwenye lengo, angalia kama client anaruhusiwa kutoka kwa app ya third‑party:
strings /System/Library/Extensions/IOHIDFamily.kext/Contents/MacOS/IOHIDFamily | \
grep -E "^com\.apple\.(driver|private)"
  • Kwa GPU/iomfb bugs, kupitisha oversized arrays kupitia IOConnectCallMethod mara nyingi inatosha kusababisha bad bounds. Minimal harness (selector X) to trigger size confusion:
uint8_t buf[0x1000];
size_t outSz = sizeof(buf);
IOConnectCallStructMethod(conn, X, buf, sizeof(buf), buf, &outSz);
